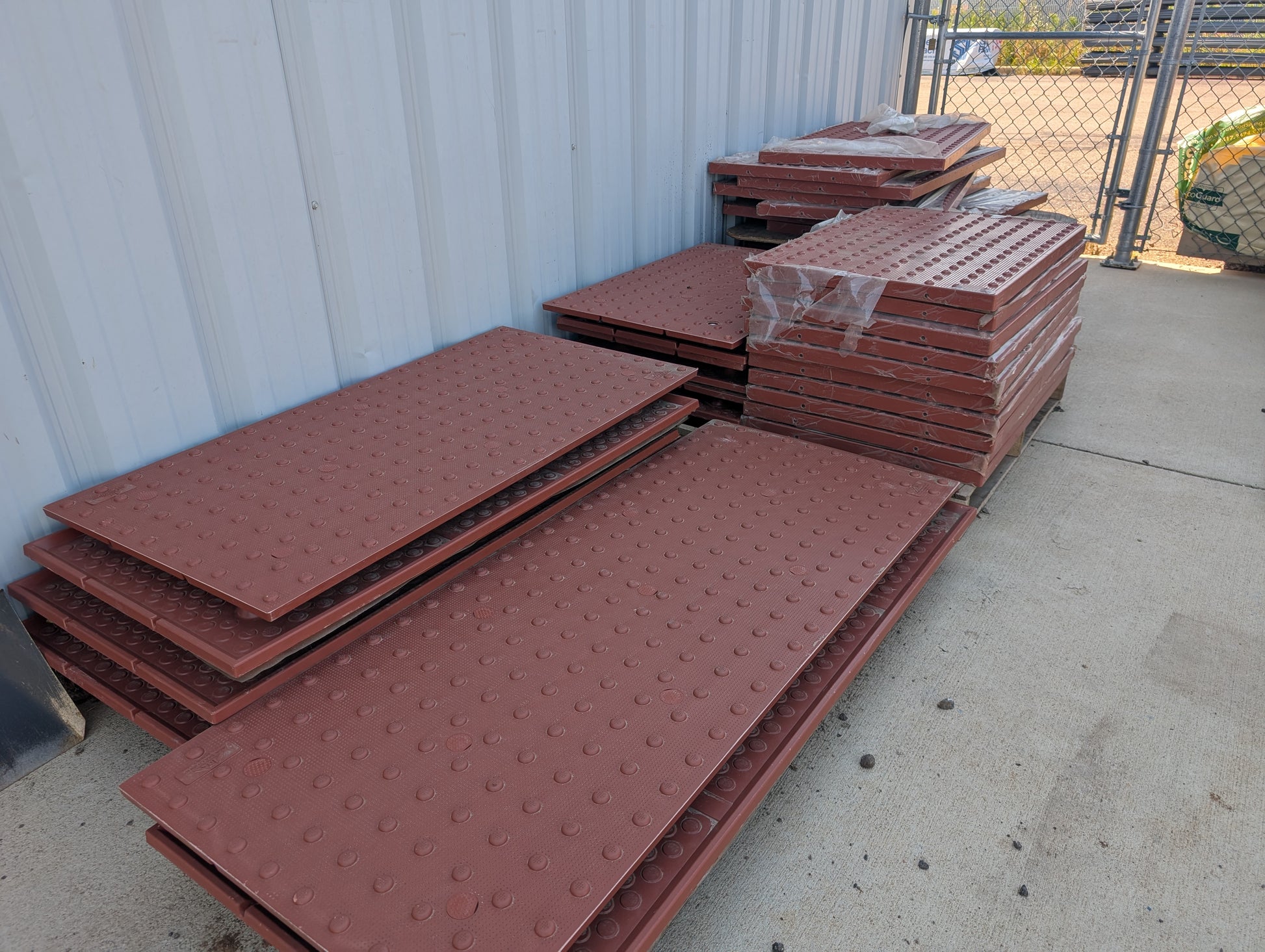

Made with the same best in class material the game changing market innovation released by ADA Solutions is the only product that is 100% replaceable. An incredible cost – effective benefit when implementing public accessibility plans.
Body thickness is 0.20” not including truncated domes (10% greater than the closest alternative).
Panel weight is 2.25 lbs. per SF (12% more material than the closest alternative).
Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
Utilizes time-tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
This ensures 2” of embedment depth into the concrete (50% deeper than the closest alternative).
The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy-duty metal bolt located 0.25” into the body of the panel.
The bolt head is fully covered and protected by structurally fit caps. This is far superior to the open-faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.
